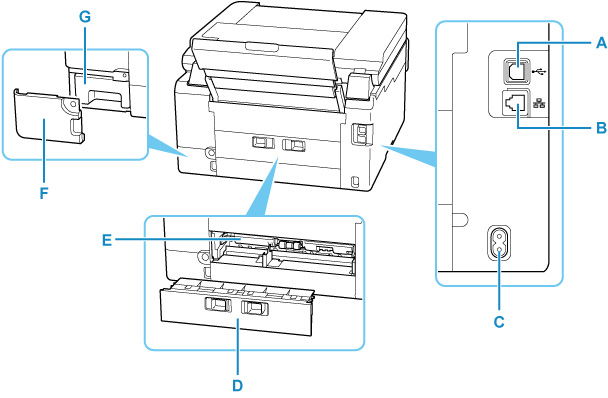

Rear View

Image showing the rear of the printer
A: USB Port
Plug in the USB cable to connect the printer with a computer.
B: Wired LAN Connector
Plug in the LAN cable to connect the printer to a LAN.
C: Power Cord Connector
Plug in the supplied power cord.
D: Rear Cover
Detach when removing jammed paper.
E: Transport Unit Cover
Open when removing jammed paper.
F: Maintenance Cover
Remove when replacing the maintenance cartridge.
G: Maintenance Cartridge

Absorbs ink used for cleaning.

Important

  • Do not touch the metal casing.

  • Do not plug in or unplug the USB cable or LAN cable while the printer is printing or scanning with the computer. This can cause trouble.
